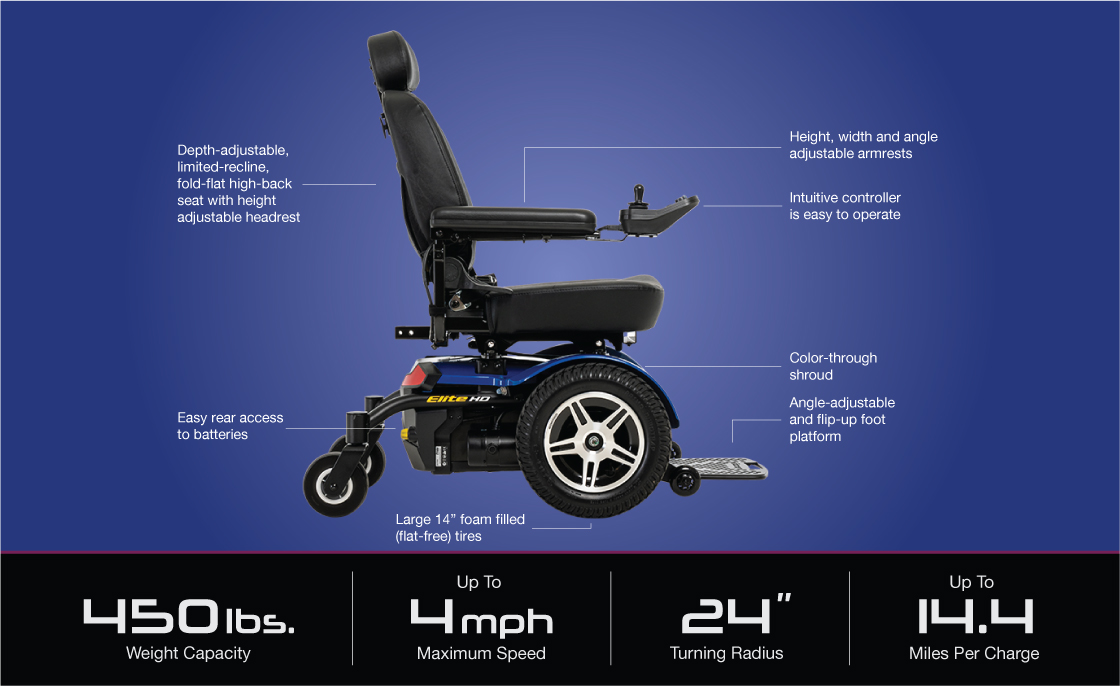

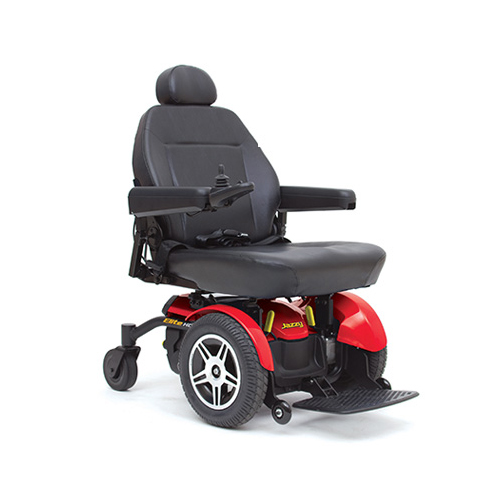

The Jazzy Elite HD
features two-motor, front-wheel
drive technology and heavy-duty construction. The Jazzy
Elite HD features 14" drive wheels for enhanced outdoor
performance combined with a front-wheel drive design to
provide tight turns for optimal indoor maneuverability in
small spaces. Large front wheels add extra absorption for
superb climbing capabilities and combine with front antitip wheels for handling various terrains with ease.
| Weight Capacity | 450 lb |
| Overall Length | 42.5" |
| Overall Width | 24.5" |
| Range | 14.4 mi |
| Top Speed | 4 mph |
| Turning Radius | 24" |
| Ground Clearance | 3" |
| Weight, Total | 214.5 lb |
| Weight, Base | 89 lb |
| Weight, Seat | 51.5 lb |
| Weight, Batteries | 74 lb |
| Minimum Seat Height | 20" |
| Maximum Seat Height | 22" |
| Drive Wheels | 14" Foam Filled |
| Caster Wheels | 6" Solid |
| Controller Type | 60A, Dynamic |
| Charger Type | 5A, off-board |
| Battery Type | 12 volt, NF-22 |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Color
Red$0.00
Batteries
- NF-22, AGM (set of 2)$0.00
Swing-Away Joystick Mounting Bracket
- Standard Mount$0.00
- Swing-Away Joystick Mounting Bracket - Left$245.00
- Swing-Away Joystick Mounting Bracket - Right$245.00
Seating
- Captain Seats$0.00
- Depth-Adjustable, Limited Recline, High Back with Quick-Release Seat Frame$0.00
- 18″W×18″–20″D w/60" Lap Belt$0.00
- 20″W×18″–20″D w/60" Lap Belt$0.00
- 22″W×20″–22″D w/70" Lap Belt$0.00
- Deluxe Contour, Limited Recline, High Back$0.00
- 20″W×22″D w/60" Lap Belt$450.00
- Deluxe Contour, High Back$0.00
- 22″W×18″D w/70" Lap Belt$450.00
- 22″W×20″D w/70" Lap Belt$450.00
- 24″W×20″D w/80" Lap Belt$0.00
- 24″W×22″D w/80" Lap Belt$450.00
- 24″W×24″D w/80" Lap Belt$450.00
- Solid Seat Pan Seats$0.00
- Deluxe Contour, Limited Recline, High Back$0.00
- 18″W×18″D w/60" Lap Belt$0.00
- 18″W×20″D w/60" Lap Belt$0.00
- 20″W×18″D w/60" Lap Belt$0.00
- 20″W×20″D w/60" Lap Belt$0.00
- Deluxe Contour, High Back, with Solid Seat Pan$0.00
- 22″W×20″D w/70" Lap Belt$0.00
Leg Rests
- 13.75" W x 11 "D Foot Platform$0.00
- Elevating Leg Rests, 8.55" x 6" Footplates (w/1-Hole Calf Pad Adjustment)$342.00
- Elevating Leg Rests, 8.5" x 6" Footplates (w/3-Hole Calf Pad Adjustment)$342.00
- Swing Away Footrests, 7.25" x 6" Footplates$172.00
- Swing Away Footrests, 8.5" x 6" Footplates$172.00
Leg Rest Accessories
- Heel Loops for Swing-away Leg Rests (pair)$53.00
- Heel Loops for Elevating Leg Rests (pair)$53.00
- Residual Limb Support, Left$342.00
- Residual Limb Support, Right$342.00
Armrests - Required (correct ones will ship)
- Height Adjustable Flip-Up Armrests$0.00
Rear Accessories (only one can be used at a time)
- Rear Basket$118.00
- Cane & Crutch Holder$110.00
- Oxygen Tank Holder$118.00
- Walker Holder$125.00
Other Accessories
- Weather Cover, Medium, Black$168.00
- Cup Holder for Deluxe Contour Seat$32.00
Cup Holder for Comfort Seat$30.00- Saddle Bag (12.5″×9.875″)$40.00
- Flag Holder$35.00
- Safety Flag$40.00
- Cell Phone Holder$74.00
- Bell-Shaped Foot Platform$235.00
Additional Lap Belt
- No Additional Lap Belt$0.00
- 50"$39.90
60"$39.90- 70"$39.90
- 80"$39.90
- 90"$39.90
Warranty
- 1 Year In-Home Parts & Labor Warranty$0.00
- 2 Year In-Home Labor Warranty$269.00
