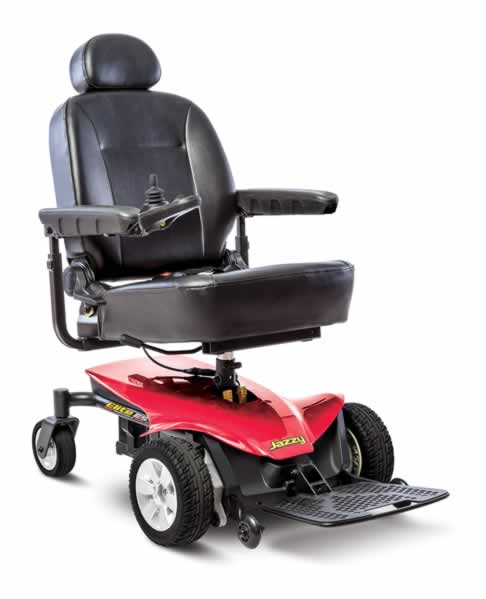

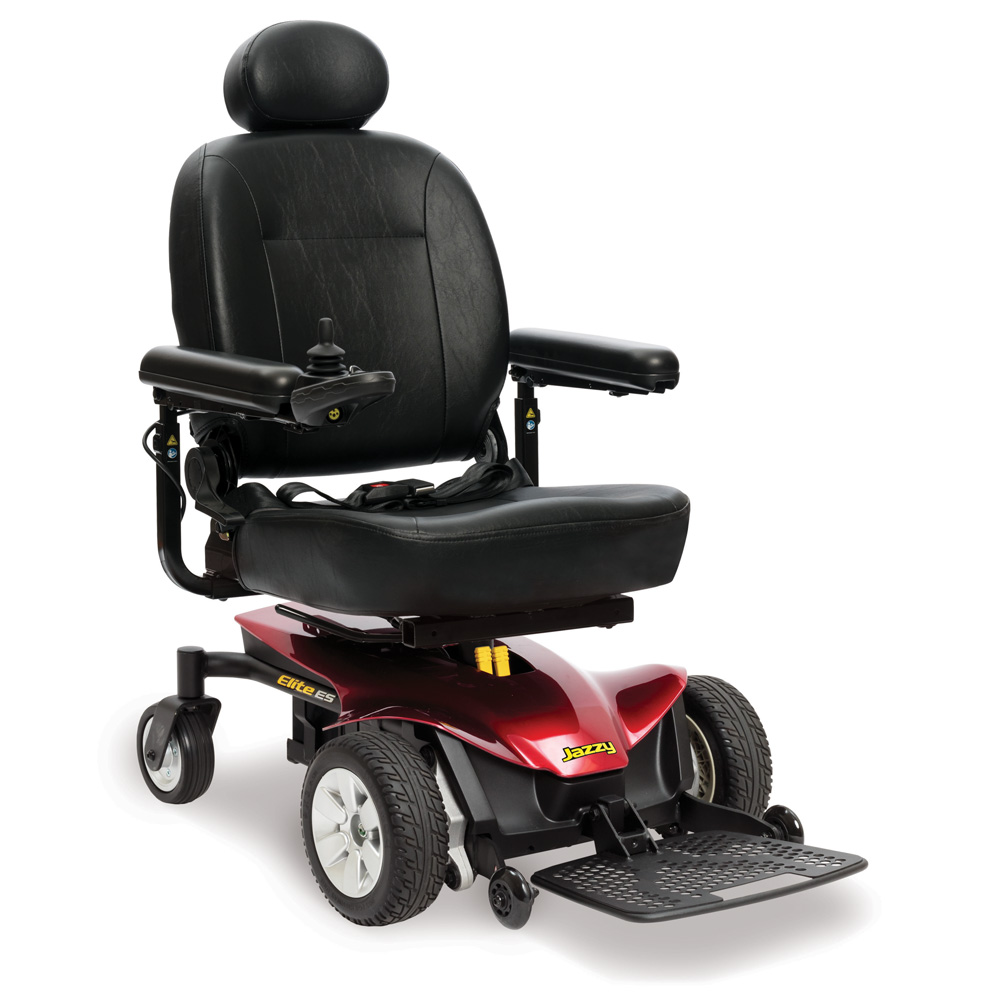

An experience so superior, it can only be elite. The Jazzy Elite ES features large, front-drive wheels to absorb the bumps and uneven surfaces of everyday life. The comfortable, high-back seat gives you the support you need all day, every day.
Features:
Features:

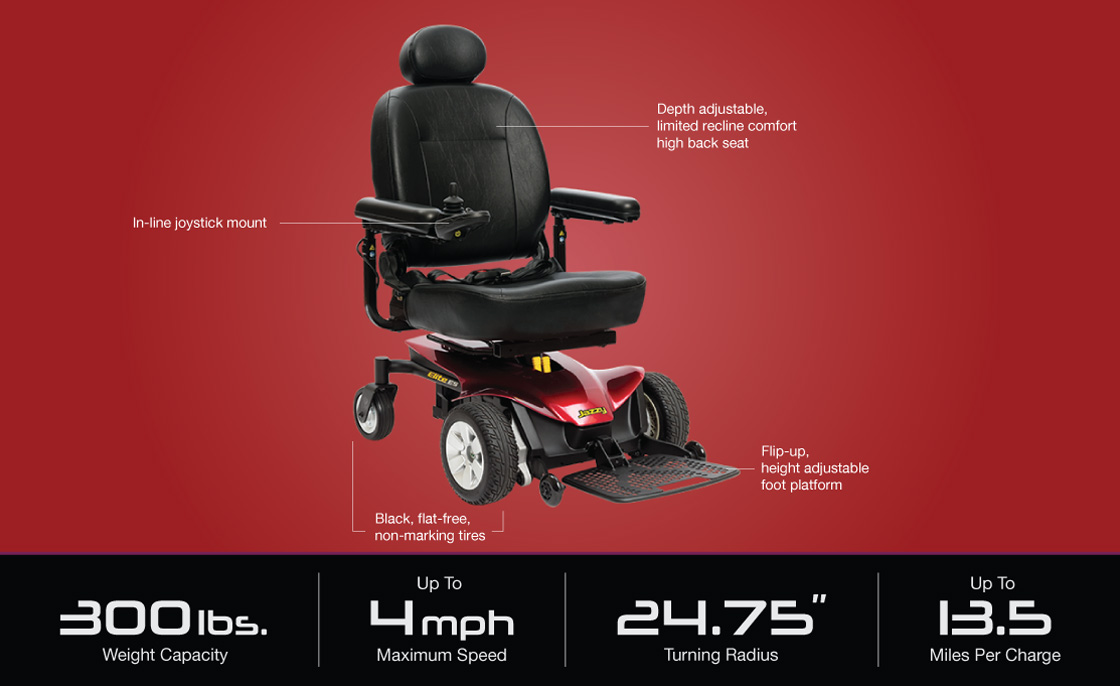

- 300 lbs. weight capacity
- Up to 4 mph
- 24.75" turning radius
- Up to 13.5 miles per charge
- In-line, front-wheel drive technology provides tight turns around corners
- Comfortable, depth-adjustable, limited recline high-back seat with headrest
- 40-amp, PG GC 3 controller
- Optimal indoor maneuverability in small spaces
- Large front wheels for extra absorption over obstacles
- Available in Candy Apple Red
| Weight Capacity | 300 lb |
| Overall Length | 34.75" |
| Overall Width | 22.75" |
| Range | 13.5 mi |
| Top Speed | 4 mph |
| Turning Radius | 24.75" |
| Ground Clearance | 1.5" |
| Weight, Total | 162 lb |
| Weight, Base | 69 lb |
| Weight, Seat | 43 lb |
| Weight, Batteries | 50 lb |
| Minimum Seat Height | 21.5" |
| Maximum Seat Height | 23.5" |
| Drive Wheels | 9" Solid |
| Caster Wheels | 6" Solid |
| Controller Type | 40 amp, PG GC 3 controller |
| Charger Type | 3.5 amp off-board |
| Battery Type | 2x U-1 12V |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Color
Candy Apple Red$0.00
Batteries
- U-1 27Ah AGM Battery (2 Required for Unit)$140.00
Seating (All Seats Come with 60" Lap Belt Standard)
- Captain Seats - Deluxe Contour Seats May Require Longe Leadtime$0.00
- Depth-Adjustable, Comfort Seat, Limited Recline, High Back$0.00
- 16″W × 16″ – 18″D$0.00
- 18″W × 18″ – 20″D$0.00
- 20″W × 18″ – 20″D$0.00
- Deluxe Contour, Limited Recline, High Back$0.00
- 16″W × 16″D$450.00
- 16″W × 18″D$450.00
- 16″W × 20″D$450.00
- 18″W × 16″D$450.00
- 20″W × 16″D$450.00
- Solid Seat Pan Seats - Deluxe Contour Seats May Require Longe Leadtime$0.00
- Depth-Adjustable, Comfort Seat, Limited Recline, High Back$0.00
- 16″W × 16″ – 18″D$0.00
- 18″W × 18″ – 20″D.$0.00
- Deluxe Contour, Limited Recline, High Back$0.00
- 16"Wx16"D$450.00
- 16"Wx18"D$450.00
- 18"Wx18"D$450.00
- 16"Wx20"D$450.00
- 18"Wx20"D$450.00
- 20"Wx18"D$450.00
- 20"Wx20"D$450.00
Arm Rests (Required) - Flip-up, Height-adjustable, Full-length
- Comfort Seat Armrest, Left$90.00
- Comfort Seat Armrest, Right$90.00
- Deluxe Contour Armrest, Left$90.00
- Deluxe Contour Armrest, Right$90.00
Joystick Mounting Options
- Inline Joystick Mount (Included)$0.00
- Swing-away Inline Joystick Mount Left$245.00
- Swing-away Inline Joystick Mount Right$245.00
Optional Additional Lap Belt (60" Included with each Seat)
- 50"$39.90
60"$39.90- 70"$39.90
- 80"$39.90
- 90"$39.90
Leg Rests
- 60-90 degree Swing-Away Leg Rests (adjusts in 5 degree increments)$0.00
- Swing Away Leg rests, 7.25" x 6" Footplates (pair)$172.00
- Swing Away Leg rests, 8.5" x 6" Footplates (pair)$172.00
- Elevating Leg Rests$0.00
- Elevating Leg Rests, 8.5" x 6" Footplates (pair)$342.00
- Leg Rest Accessories$0.00
- Heel Loops, for Swing-Away Leg Rests (pair)$53.00
- Heel Loops, for Elevating Leg Rests (pair)$53.00
- Residual Limb Support - Left$342.00
- Residual Limb Support - Right$342.00
Rear Accessories (only one can be installed at a time)
- Rear Basket for Deluxe Contour Seat$118.00
- Rear Basket for Comfort Seat$118.00
- Cane & Crutch Holder for Deluxe Contour Seat$110.00
- Cane & Crutch Holder for Comfort Seat$110.00
- Oxygen Tank Holder for Deluxe Contour Seat$118.00
- Oxygen Tank Holder for Comfort Seat$140.00
- Walker Holder for Deluxe Contour Seat$125.00
- Walker Holder for Comfort Seat$125.00
Other Accessories
- Weather Cover, Medium, Black$168.00
- Cup Holder for Deluxe Contour Seat$32.00
Cup Holder for Comfort Seat$30.00- Saddle Bag$40.00
- Flag Holder for Deluxe Contour Seat$35.00
- Flag Holder for Comfort Seat$35.00
- Height Adjustable Foot Platform Bracket$50.00
Military Branch Patches
Air Force$20.00
Army$20.00
Coast Guard$20.00
Marines$20.00
Navy$20.00
Purple Heart$20.00
Warranty
- 13 Month In-Home Parts & Labor Warranty$0.00
- 2 Year In-Home Labor Warranty$269.00
- 3 Year In-Home Labor Warranty$325.00
Delivery
- Inside Delivery$290.00
