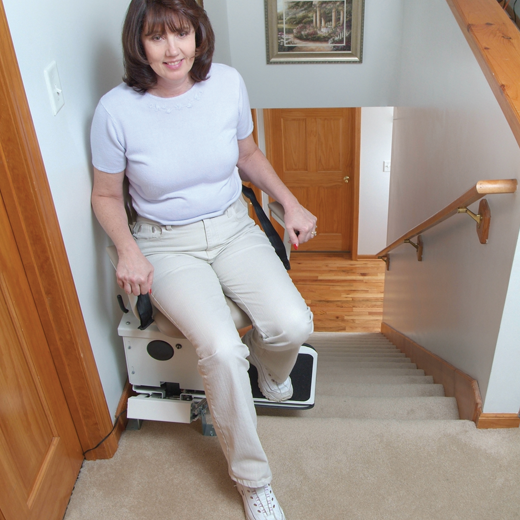

Harmar's SL350AC Stair Lift is engineered with a carriage that is pre-installed on a short section of the durable extruded aluminum track. The backrest has three different settings, and the fold-up footrest adjusts to two different heights for the utmost in custom comfort. The spacious, wide seat features thick padding and attractive upholstery.
Features:
Features:
- Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
- Mounts to the stairs (not the wall) on either side of staircase
- Operates on standard 115V AC household current
- Extruded aluminum track is available in custom lengths
- Seat and footrest fold to save space
- Separate controls at top and bottom of stairs
Outdoor Stair Lifts are not intended for use in snow and ice
* CT, MI and WA customers please check your local inspection regulations for stair lifts.
| Drive Type | Cable |
| Battery Powered | No |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 15.5' |
| Max Track Length, Optional | 25' |
| Unit Footprint, In Use | 24.5" |
| Unit Footprint, Parked | 14" |
| Track Footprint | 12" |
| Track Material | Aluminum |
| Track Width | 8" |
| Seat Width | 17.5" |
| Seat Depth | 14" |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | No |
| Call Stations Included | Wired |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Rail Angle, Min | 30° |
| Rail Angle, Max | 45° |
| Digital Diagnostics Display | No |
| Key Lock | No |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Vinyl Seat Color
Light Almond$0.00
Seat Size
- 17.5" W$0.00
- 21" W$350.00
- Flip-Up Armrest Seat (19" W)$350.00
Options
- Keylock Package - Keyed Base & Keyed Call-Send Controls$443.00
- Keyed Base Only$236.00
- Grocery Basket$293.00
- Wireless Call/Send Controls$443.00
Track Length (15' is Standard *)
- * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.$0.00
- 15' of track * (180")$0.00
- Custom Cut track Less Than 16'$150.00
- Track length 16' and over reduces weight capacity to 250 pounds$0.00
- Custom Cut 16' to 20' of track 250 lb Capacity$350.00
- Custom Cut 20' to 25' of track 250 lb Capacity$565.00
- 20' of track Uncut 250 lb Capacity$250.00
- 25' of track Uncut 250 lb Capacity$565.00
Orientation (looking UP the staircase)
- The stair lift will be on the left$0.00
- The stair lift will be on the right$0.00
Installation
- NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.$0.00
- Self Installation$0.00
- Nationwide Installation (Not available in Oregon or Washington)$599.00
- Nationwide Installation and Measurement Service (Not available in Oregon or Washington)$749.00
- Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)$875.00
- Stair Lift Removal and Disposal (Not available in Oregon or Washington)$499.00
Installation Permit
- License / Permit / Inspection$425.00
- Permit and Inspection$350.00
- Permit (Required in Kentucky for EACH item being installed)$87.50
- Permit & Inspection (Required in Georgia for EACH item being installed)$250.00
- Permit & Inspection (Required in Alabama. Additional units incur additional fee.)$300.00
Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs$300.00
- Installation In Remote or Limited Access Location$285.00
Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.$0.00
- 1. Overall length$0.00
- 2. Top stair to bottom stair$0.00
- 3. Staircase width$0.00
- 4. Bottom clearance$0.00
- 5. Rise of one step$0.00
- 6. Tread of one step$0.00
- 7. Diagonal$0.00
- 8. Door at the top$0.00
- Need help measuring? Print out the "How to Measure" worksheet.$0.00
