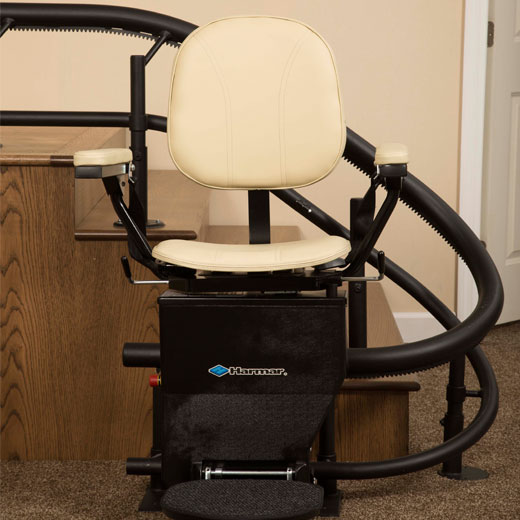

The Helix is built to last. Every staircase that is fitted with a Helix is measured with a calibrated camera kit for digital accuracy. Constructed with highly durable steel, custom precision-bent rails, and finished by experienced craftsmen, this true curved rail is highly engineered to give you an extraordinarily smooth ride.
Your unique path to independence will allow you to enjoy time with your family and your home on every level giving you independence, freedom and the quality of life you deserve.
Helix Curved Stair Lift is not user installable.
Features:
- Narrower profile
- Extremely quiet, smooth ride
- True-Curve rail with advanced bending technology creates smoother turns

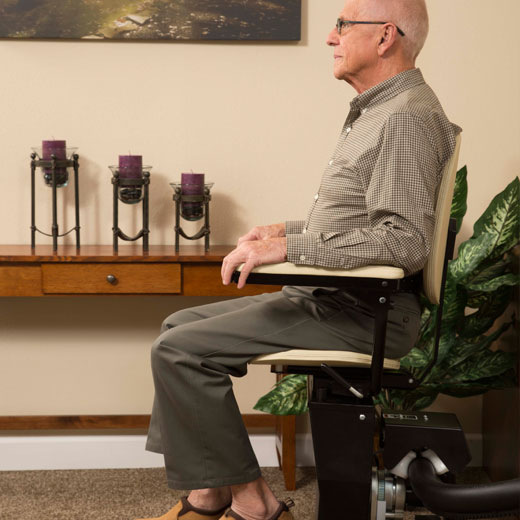

- Supportive, ergonomic seating
- Simple-connect rails and lighter chassis for easy installation
Outdoor Stair Lifts are not intended for use in snow and ice
* CT, MI and WA customers please check your local inspection regulations for stair lifts.
| Drive Type | Steel Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | No |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 20' |
| Max Track Length, Optional | 164' |
| Unit Footprint, Parked | 16" |
| Seat Width | 19" |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Rail Angle, Max | 60° |
| Digital Diagnostics Display | No |
| Key Lock | Yes |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Use Case
Residential$0.00- Commercial or Washington State - Mounted on Left Side of Stairs$422.00
- Commercial or Washington State - Mounted on Right Side of Stairs$422.00
Seat Color
- Beige$0.00
- Black$0.00
Rail Color
- Beige$0.00
- Black$0.00
Base Unit
90 Degree first turn, up to 18' rail$0.00- 90 degree first turn, up to 24' rail$1,200.00
180 degree first turn, up to 18' rail$1,605.00- 180 degree first turn, up to 24' rail$2,650.00
- Custom applications, up to 24' rail$19,362.00
Sweep, up to 24' rail$8,100.00
Spiral, up to 24' rail$17,885.00
Straight with Overrun, up to 16' rail$0.00- Straight with Intermediate landing, up to 16' rail$0.00
Options
- Seat Belt$0.00
- Top & Bottom Call-Send Stations$0.00
- Additional Call/Send$272.00
- 90 Degree Park$2,279.00
- 90 Degree Turn$2,136.00
- 180 Degree Park$2,993.00
- 180 Degree Turn$2,850.00
- Additional Track (per foot)$165.00
- Extra Spiral (per foot)$786.00
- Extra Sweep (per foot)$472.00
- Additional Charge Station$508.00
- Drop Nose$322.00
- Key Switch$272.00
- Red Emergency Stop Button$193.00
- Outdoor Package$4,590.00
Orientation (looking UP the staircase)
- The stair lift will be on the left$0.00
- The stair lift will be on the right$0.00
Installation
- Measure and Installation is Required$1,175.00
- Is There a Stair Lift Currently Installed Where this Curved Stair Lift Will Be Going?$0.00
- Stair Lift Removal Service$499.00
- CAD Service - A $2500 CAD Cost Will be Charged if the Stairlift Order is Cancelled$0.00
- Permit (Required in Kentucky for EACH item being installed)$87.50
Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs is available.$460.00
- Most sprial staircases will not accept a curved lift if the staircase is made with a single center pole.$0.00
Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.
