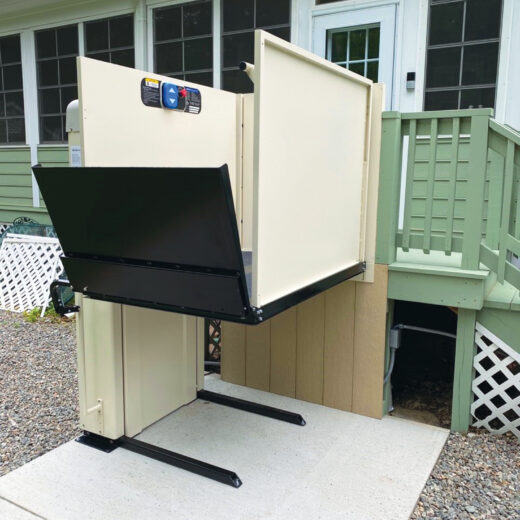

The Harmar 400-X Vertical Platform Lift represents a new generation and evolution in Vertical Platform Lifts.
Innovation is at the heart of this next generation VPL. The Harmar 400-X is an outstanding choice for vertical lifting solutions in home settings where an elevator is impractical or unnecessary. SteadyDrive Ensures a smooth, quiet and stable lift.
Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
Innovation is at the heart of this next generation VPL. The Harmar 400-X is an outstanding choice for vertical lifting solutions in home settings where an elevator is impractical or unnecessary. SteadyDrive Ensures a smooth, quiet and stable lift.
Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 53" |
| Maximum Lift Height Upgrade | 53" |
| Lift Speed (FPM) | 10.4 |
| Arrives Assembled | Yes |
| Drive System | Acme Screw Drive |
| Battery Powered Option | No |
| Constant Pressure Platform Control | Yes |
| Platform Size | 36" x 48" (34" Usable Width) |
| Optional Platform Sizes | 36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable) |
| Platform Configuration | Straight-Thru Access |
| Guard Panel | 36" for 36"x48" Platform, all others 42" |
| Portable | No |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Lifting Height
53" MAXIMUM LIFT HEIGHT$0.00
Application
- Residential$0.00
Power Source
- AC POWERED$0.00
Use Option
- OUTDOOR USE$216.00

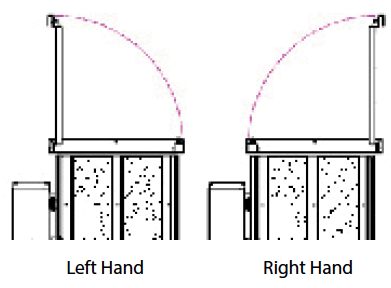

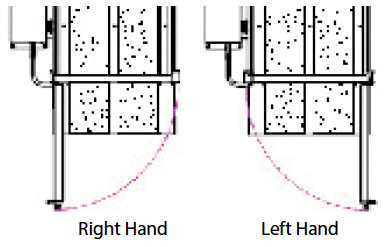

Tower Orientation
- TOWER ON THE LEFT$0.00
- TOWER ON THE RIGHT$0.00
Number of Stops
- 2 STOPS$0.00
Hoistway Installation
- INSTALLED IN A HOISTWAY$0.00
- NO HOISTWAY$0.00
Platform Type (Width, Depth, Height)
- Select From Options Below$0.00
- [___________36"_High____________]$0.00
- Straight Through (180 Degrees) Requires Folding Ramp$0.00
- 36 X 48 X 36 STRAIGHT THROUGH PLATFORM$0.00
- [___________42"_High____________]$0.00
- Straight Through (180 Degrees)$0.00
- 36 X 54 X 42 STRAIGHT THROUGH PLATFORM$454.00
- 36 X 60 X 42 STRAIGHT THROUGH PLATFORM$839.00
- 42 X 54 X 42 STRAIGHT THROUGH PLATFORM$931.00
- 42 X 60 X 42 STRAIGHT THROUGH PLATFORM$1,047.00
- 90 Degrees (Tower on Left / Right determined by looking into lift from ground level)$0.00
- 36 X 54 X 42 90 Degree LEFT PLATFORM$839.00
- 36 X 54 X 42 90 Degree RIGHT PLATFORM$839.00
- 36 X 60 X 42 90 Degree LEFT PLATFORM$1,247.00
- 36 X 60 X 42 90 Degree RIGHT PLATFORM$1,247.00
- 42 X 54 X 42 90 Degree LEFT PLATFORM$1,354.00
- 42 X 54 X 42 90 Degree RIGHT PLATFORM$1,354.00
- 42 X 60 X 42 90 Degree LEFT PLATFORM$1,454.00
- 42 X 60 X 42 90 Degree RIGHT PLATFORM$1,454.00
Platform Gate
- 42" High Gates Below not for 36" High Platform$0.00
- NO PLATFORM GATE$0.00
36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT$1,454.00- 36 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT$1,454.00
- 42 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT$1,700.00
- 42 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT$1,700.00
Platform Controls
- Emergency Stop Alarm with Lighted Button$177.00
Platform Options
- 54" HANDRAIL [Not applicable for 36x48x36]$154.00
- 60" HANDRAIL [Not applicable for 36x48x36]$193.00
- Keylocks for Controls$108.00
- CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH)$154.00
Ramp Type
- 36" AUTO-FOLD RAMP [Must Select for 36x48x36 Platform]$0.00
- 42" AUTO-FOLD RAMP$116.00
- 36" FIXED RAMP$0.00
- 42" FIXED RAMP$116.00
- Pit, no Ramp (Add Pit Switch)$262.00
Interlocks
- INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE.$0.00
- EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH$585.00
- EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH$585.00
- OTHER INTERLOCK OPTIONS$0.00
- WIRING FOR INTERLOCKS PROVIDED BY OTHERS$300.00
Landing Gate
36 X 42 LANDING GATE W/EMI INTERLOCK, LEFT$1,516.00- 36 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT$1,516.00
- 42 X 42 LANDING GATE W/EMI INTERLOCK, LEFT$1,700.00
- 42 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT$1,700.00
Landing Gate Call/Send
- CALL-SEND ROCKER SWITCH FOR LANDING GATE$136.00
- CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE$247.00
Call Send Options
- CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)$262.00
- KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)$354.00
Fascia Panels
- NO FASCIA PANELS$0.00
- FASCIA PANEL; 41" WIDE x 24" TALL$116.00
- FASCIA PANEL; 41" WIDE x 53" TALL$162.00
- FASCIA PANEL; 47" WIDE x 24" TALL$147.00
- FASCIA PANEL; 44" WIDE x 53" TALL$231.00
- FASCIA PANEL: 41" WIDE, CUSTOM CUT TO HEIGHT$239.00
- FASCIA PANEL: 47" WIDE, CUSTOM CUT TO HEIGHT$270.00
Additional Options
- TOWER BRACE WITH BRACKET$300.00
- EXTRA KEYS (EACH)$47.00
- FLOAT LEVEL SWITCH$262.00
- CUSTOM COLOR (ALLOW 6-8 WEEKS - Call for Availability and Price)$0.00
Delivery Options
- FLAT BED AND FORKLIFT DELIVERY$539.00
- Liftgate Service$130.00
- Residential Delivery or High Cost Delivery Zone$145.00
- Pickup at Freight Terminal$0.00
