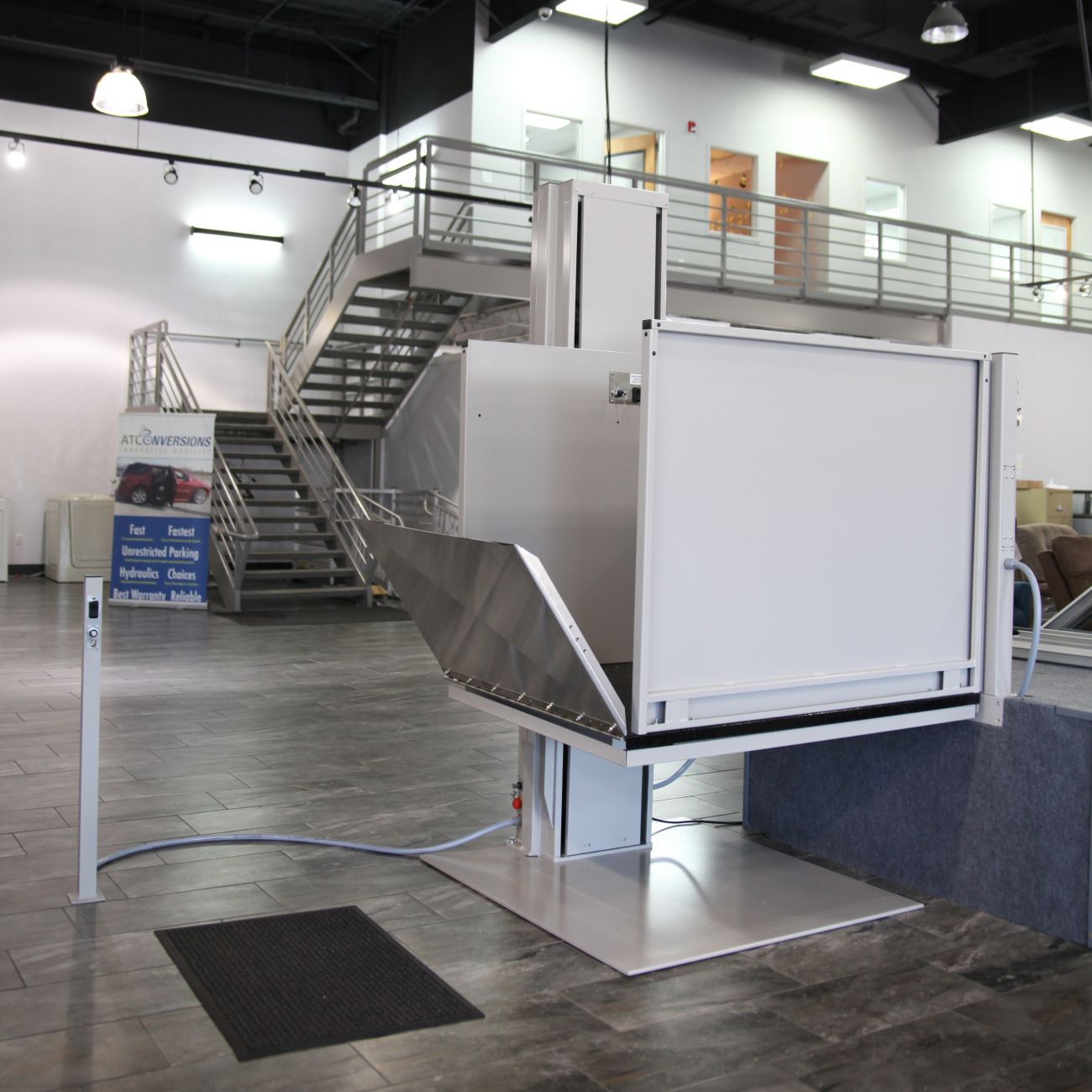

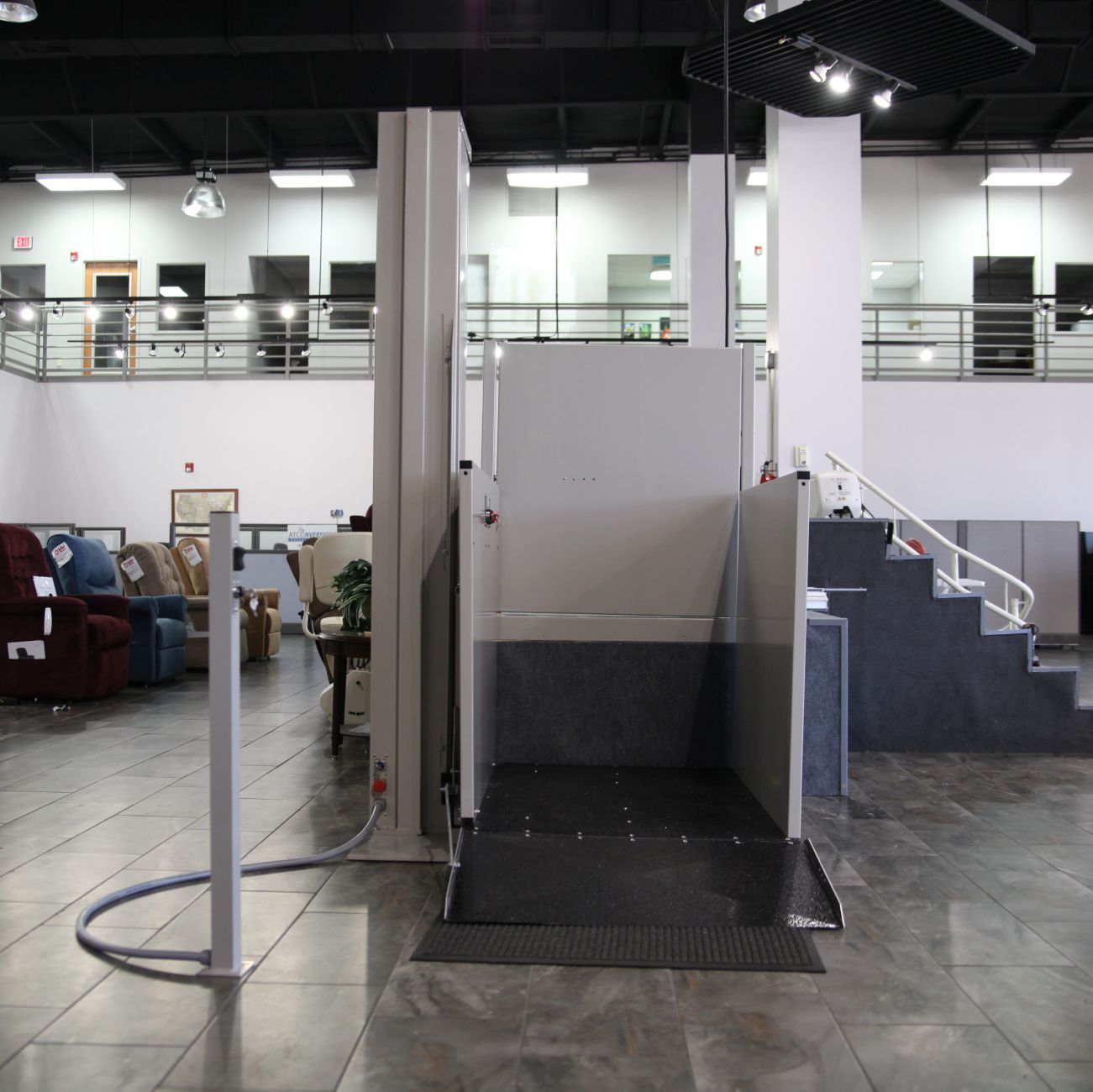

The AmeriGlide Nano Vertical Platform Lift is the market's
slimmest and most elegant tower design, which
means a more attractive look, low shipping costs
and easier installation.
The attractive Nano Vertical Platform Lift has been designed, developed and manufactured to meet the highest safety and security standards in the industry with an innovated design that features:
The attractive Nano Vertical Platform Lift has been designed, developed and manufactured to meet the highest safety and security standards in the industry with an innovated design that features:
- Much Smaller Footprint
- Automotive-Grade Steel
- More Attractive Look
- Plug-N-Play
- Reversible (left or right tower)
| Lifting Capacity | 800 lb |
| Standard Lift Height | 64" |
| Maximum Lift Height Upgrade | 64" |
| Lift Speed (FPM) | 12 |
| Arrives Assembled | Yes |
| Drive System | Acme Screw |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | Included |
| Keyed Platform Control | Included |
| Platform Type | Non-skid (Epoxy crushed and recycled tires) |
| Platform Size | 36" x 54" |
| Platform Configuration | Straight-Thru Access |
| Maximum Stops | 2 |
| Portable | No |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Nano Includes

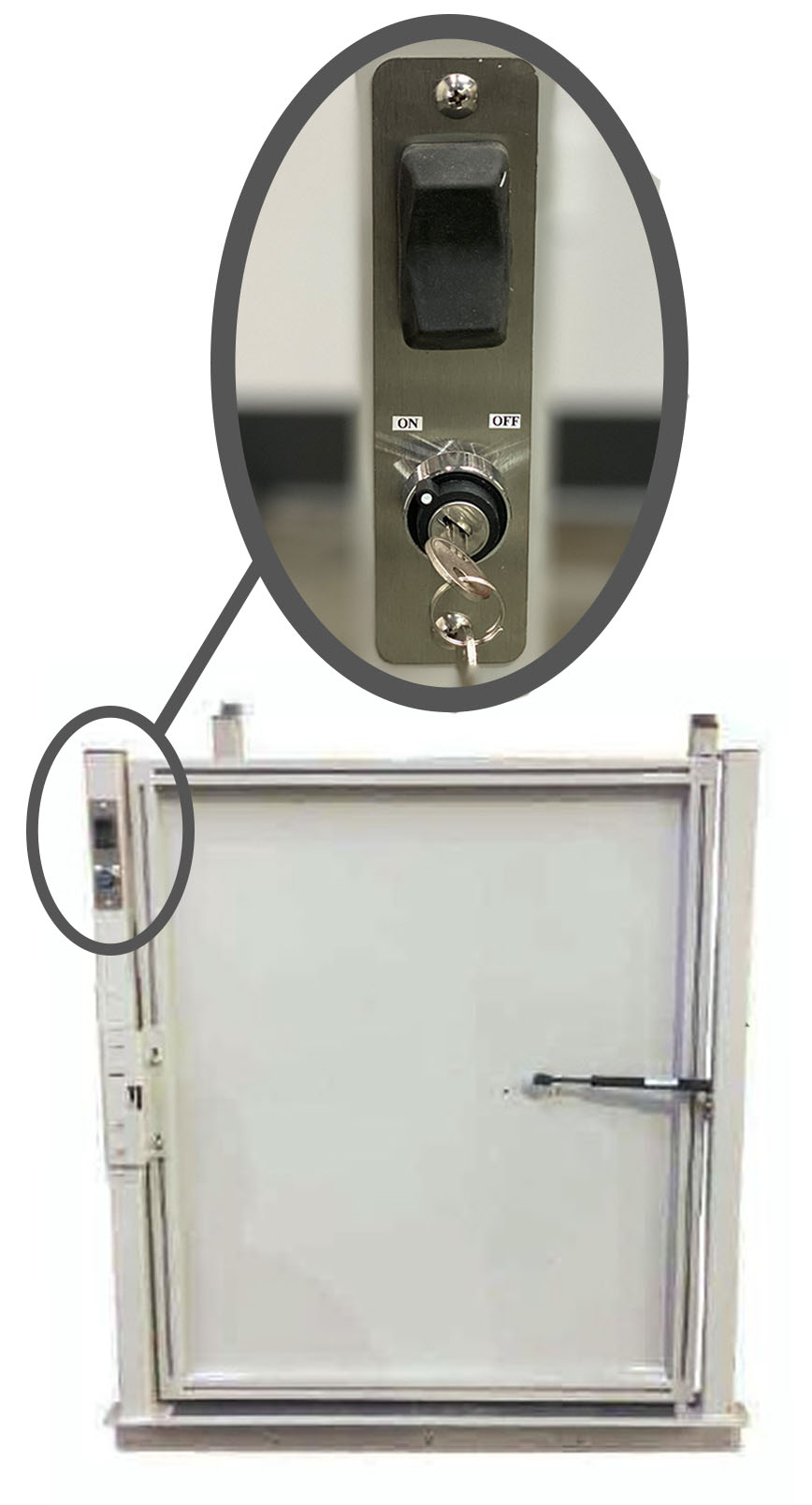

455 Keys$0.00- Rocker Switch$0.00
- Audible Emergency Alarm$0.00
- Pit Switch$0.00
- AC Power Cord (120VAC/20A) and Interlock Wiring Kit (Interlocks Not Included)$0.00
- Emergency Lowering$0.00
Power Source
- DC Battery Powered (2 x U1 Batteries Included)$0.00
Number of Stops
- Two Stop$0.00
Lifting Height
- 64" Maximum Lift Height (tower 92")$0.00
Platform / Tower Configuration
Straight Thru Left Hand$0.00
Straight Thru Right Hand$0.00
Platform Dimensions (Dimensions are All Clear)
- 36" x 54"$0.00
Entrance Gate Options (Interlock Included with Gate)
- A Call/Send Control must be ordered for every Gate Ordered$0.00
- 36" W x 42" H Upper Landing Gate$1,199.00
Call/Send Options
Keyed Call/Send Post - Lower Landing$250.00- Keyed Call/Send Post - Upper Landing$250.00
Keyed Call/Send Flush Mount - Lower Landing$250.00- Keyed Call/Send Flush Mount - Upper Landing$250.00
Keyed Call/Send Surface Mount - Lower Landing$250.00- Keyed Call/Send Surface Mount - Upper Landing$250.00
Gate Mounted for Upper Landing Gate$250.00
Interlocks (For Gates/Doors Provided by Others)
Interlock Only (For Gates/Doors Provided by Others)$399.00
State Required Inspections / Permits / Evaluations
- Permit (Required in Kentucky)$87.50
- Georgia Permit & Inspection Fees$250.00
- Site Evaluation (Required for sites outside a 50 mile radius of Raleigh when Install Purchased)$150.00
- Alabama residents, please call 1 (205) 202-0158 for installation and permit pricing.$0.00
Installation (Within 100 miles of Raleigh)
- Self-Install$0.00
- Up to 64" Lift Height Installation$1,295.00
Delivery Options
- Pick up at Local Freight Terminal$0.00
- Raleigh NC Warehouse Pickup$675.00
- Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site$0.00
- Site Shipping - Liftgate Delivery$250.00
- Site Shipping - Flatbed & Forklift Delivery (Available in Most Areas)$1,499.00
- Factory Pickup$0.00
Delivery Zones (adds to flat shipping charge)
- Deliver to: Eastern and East-Central States$0.00
- Deliver to New York City 5 Boroughs$299.00
- Deliver to: MN, WI, NE, IA, IL, KS, MO, AR, OK, LA, TX$194.00
- Deliver to: ND, SD, WY, CO, NM$475.00
- Deliver to: MT, ID, UT, AZ, NV, CA, WA, OR$913.00
- Deliver to: AK, HI, PR (call for price)$0.00
